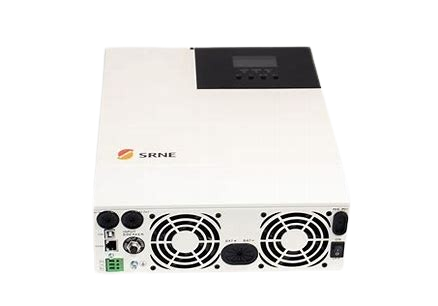

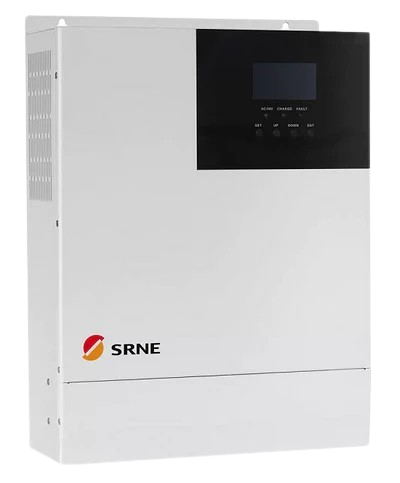

SRNE 3.3kW Off-Grid 24V Inverter

Description AC Mode • Rated Input Voltage: 220VAC / 230VAC • Input Voltage Range: 170VAC to 280VAC; 90VAC to 280VAC • Frequency: 50Hz / 60Hz (Auto detection) • Overload / Short Circuit Protection: Circuit Breaker • Efficiency: >95% • Conversion Time: 10ms • Maximum Bypass Overload Current: 30A Inverter Mode • Output Voltage Waveform: Pure Sine Wave • Rated Output Power: 3300W • Power Factor: 1 • Rated Output Voltage: 230VAC • Output Frequency: 50Hz / 60Hz • Efficiency: >92% • Loaded Motor Capability: 2HP • Output Short Circuit Protection: Circuit Breaker • Bypass Breaker: 30A • Rated Battery Input Voltage: 24VDC (Min Start Voltage of 22VDC) • Battery Voltage Range: 20VDC – 33VDC AC Charging • Battery Type: Lead Acid / Lithium • Maximum Charging Current: 80A • Charging Voltage Range: 20VDC to 33VDC • Short Circuit Protection: Circuit Breaker and Blown Fuse • Circuit Breaker: 30A PV Charging • Maximum PV Open Circuit Voltage: 500VDC • PV Operating Voltage Range: 120VDC to 500VDC • MPPT Voltage Range: 120VDC to 450VDC • Maximum Input PV Power: 4000W • PV Charging Current Range: 0A to 80A (Adjustable) • Charging Short Circuit Protection: Blown Fuse • Wiring Protection: Reverse Polarity Protection Environment Limit • Ingress Protection: IP20 • Operating Temperature Range: -15°C to 55°C • Humidity Range: 5% to 95% (Conformal Coating Protection) • Cooling: Forced Air Cooling, Variable Speed Fan (<60dB) • Communication: USB / CAN / RS485(WIFI/GPRS) / Dry Node Control
