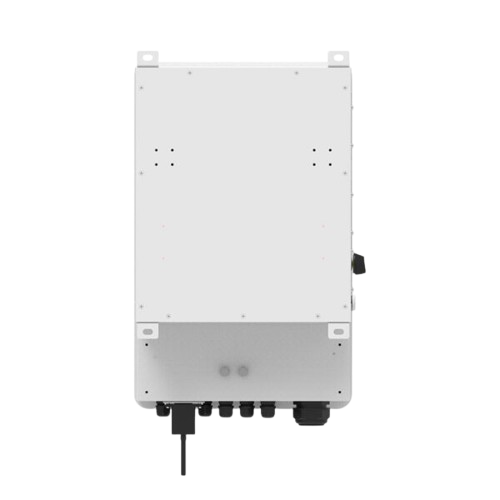

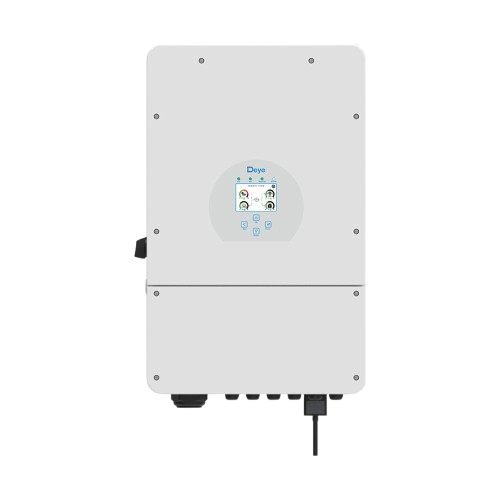

DEYE 12Kw Hybrid Single-Phase Inverter

Description DEYE 12Kw Hybrid Single-Phase Inverter Includes:  Wi-Fi Dongle BMS Communication Cable Higher yields. Improve self-consumption ratio up to 80%, reducing your electricity bill. DC/AC ratio up to 1.3, completely suitable for double-side PV modular. Two MPPT design, Max. efficiency of 97.6%. User-friendly. LCD Touch screen and buttons, easy operation. Compatible with lithium-ion battery and lead acid battery. Web browser and mobile App monitoring supported. Reliable. PV lighting protection, Anti-islanding protection, Leakage current protection etc. Support store energy from DG when needed, ensure the system working within 7*24H. IP65 protection degree, adapt to indoor and outdoor using. Automatically switch from on-grid to off-grid mode within 5ms. Zero exporting function, fast reaction within 200ms in zero export mode. Smart. Programmable charging and discharging schedule. Both wind turbines and solar panels can be connected as DC input power. Max. 16 units can be paralleled for higher system power. Retrofitting of existing solar system to energy storage system. Features: 100% unbalanced output, each phase Max. output up to 50% rated power. 48V low voltage battery, transformer isolation design. 6 time periods for battery charging/discharging. Max. charging/discharging current of 220A. Frequency droop control. DC couple and AC couple to retrofit existing solar system. Support storing energy from diesel generator Battery Input Data Battery Type: Lead-acid or Li-lon Battery Voltage Range (V): 40-60V Max. Charging Current (A): 220A Max. Discharging Current (A): 220A Charging curve: 3 Stages/Equalization External Temperature Sensor: Optional Charging Strategy for Lithium Battery: Self-adaption to BMS PV String Input Data Max. DC Input Power (W): 15600W. PV input Voltage (V): 500V (150V-500V). MPPT Range (V): 150-425V. PV Input Current (A): 26 26 26 No. of MPPT Trackers: 3 No. of Strings Per MPPT Tracker: 2 AC Output Data Rated AC Output and UPS Power (W): 12000W Max AC Output Power (W): 12000W Peak Power(off-grid): 2 times of rated power, 5 S. AC Output Rated Current(A): 18A Max.AC Current(A): 27A Max Continuous AC Pass-through(A): 50A. Output Frequency and Voltage: 50/60Hz; 220/230Vac (single phase) Grid Type: Single Phase Current Harmonic Distortion: THD<3% (Linear load<1.5%). Efficiency Max. Efficiency: 97.60% Euro Efficiency: 97.00% MPPT Efficiency: 99.90% Protection PV Arc Fault Detection: Integrated (Except European Type) PV Input Lightning Protection: Integrated Anti -islanding Protection: Integrated PV String Input Reverse Polarity Protection: Integrated Insulation Resistor Detection: Integrated Residual Current Monitoring Unit: Integrated Output over Current Protection: Integrated Output Shorted Protection: Integrated Output over Voltage Protection: Integrated Certifications and Standards Grid Regulation: CEI 0-21, VDE-AR-N 4105, NRS 097, IEC62116, IEC 61727,G99, G98, VDE 0126-1-1, RD 1699, C10-11 Safety EMC/Standard: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1 IEC/EN 62109-2 General Data Operating Temperature Range ( C ): -25—60 C , >45 C Derating Cooling: Smart cooling Noise (dB): <30 Communication with BMS: RS485; CAN Weight (kg): 48.5 Size (mm): 464W X 798.4H X 300mm Protection Degree: IP65 Installation Style: Wall-mounted Warranty: 5 years
