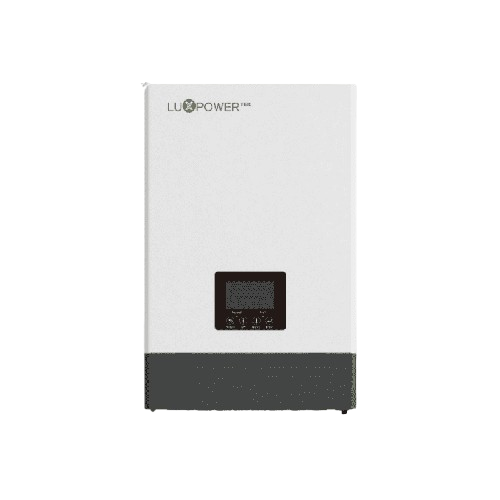

Luxpower SNA 5Kw Eco Hybrid Single-Phase Inverter The SNA 5Kw is a durable single-phase hybrid inverter for on-grid and off-grid use. With 8000W max PV array power and high efficiency, it optimizes energy management. It seamlessly switches between grid and solar power, ensuring reliable performance in unstable conditions. With advanced protection and efficiency, the SNA 5Kw ensures stable and smart energy management for modern homes and businesses General Features Max. PV Array Power: 8000W (4000/4000) Rated PV Input Voltage: 320V Number of Independent MPPT Inputs: 2 PV Input Voltage Range: 100-480V MPPT Voltage Range: 120-385V Start-up Voltage: 100V Max. PV Input Current per MPPT: 17A Max. PV Short-circuit Current per MPPT: 25A Battery Compatible Battery Type: Lithium-ion/Lead-Acid Rated Battery Voltage: 48V Battery Voltage Range: 38.4-60V Max. Charging/Discharging Current: 110A Max. Charging/Discharging Power: 5000W Recommended Capacity of Battery per Inverter: >200AH Force Wake Up Battery from PV Function: Yes Force Wake Up Battery from Grid Function: Yes Grid Rated AC Voltage: 230V Rated AC Frequency: 50/60Hz Rated AC Output Current: 22A Rated AC Output Power: 5000W Power Factor (PF): 0.99 (Adjustable from 0.8 leading to 0.8 lagging) Total Harmonic Distortion of Current (THDI): <5% Rated AC Current of BYPASS Relays: 40A UPS Rated Output Power: 5000W Rated Output Voltage: 230V Rated Output Current: 22A Rated Output Frequency: 50/60Hz Surge Power, Duration: 2Pn, <2s Switching Time: <15ms @ Single, <30ms @ Parallel Wave Form: Sine wave Total Harmonic Distortion of Voltage (THDV): 3% Efficiency Max. MPPT Efficiency: 99% Max. Efficiency: 93% Max. Charging Efficiency: 93% Max. Discharging Efficiency: 93% Protection Over Current/Voltage Protection: Yes AC Short-circuit Current Protection: Yes Grid Monitoring: Yes AC Surge Protection Type III: Yes Battery Reverse Polarity Protection: Yes General Dimensions (WHD): 330x504x135mm Weight: 14.5kg (32 lbs) Ingress Protection Rating: IP20 Operating Environment Temperature Range: 0-50°C Storage Temperature Range: -15-60°C Relative Humidity: 5-95% Display & Communication Interface: LCD LED, RS485/Wi-Fi/CAN Warranty: 3 years paired with HinaESS or LuxpowerTek Battery Cooling Method: Smart cooling Topology: Transformer-less Altitude: <2000m Noise Emission (Typical): <50dB
