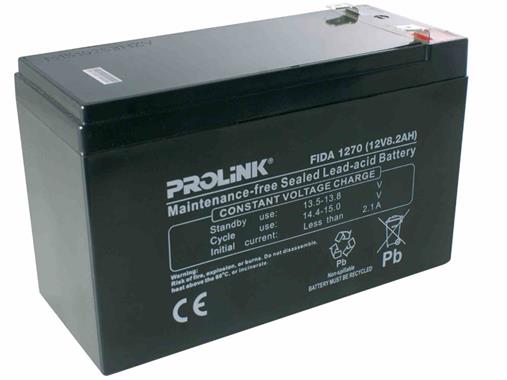

Prolink 12V / 8.2Ah UPS Battery

Description Electrical Characteristics Standby Use Voltage: ~ 13.5 – 13.8 V (float charging voltage for standby UPS operation) Cycle Use Voltage: ~ 14.4 – 15.0 V (when used in cyclic applications) Initial Charging Current: Less than 2.1 A Orikmo Physical & Construction Details Construction: Sealed, maintenance-free lead-acid with ABS container; leak-proof and low self-discharge design. Weight: Approximately 2 kg Approximate Dimensions: ~ 15.1 cm × 6.5 cm × 9.5 cm (L × W × H) . Terminals: Standard UPS battery terminals (usually F1/F2 type – check with your specific UPS model) Maintenance-Free: No need to add water; sealed VRLA design . Cycle Life: Generally >260 cycles at 100% discharge (may vary depending on conditions) Service Life: 3–5 years in float (standby) service, depending on usage and environment Compatibility: Typically used as a replacement battery for many mid-range Prolink UPS models. For example, many 1.2 kVA Prolink UPS units use two of these batteries (2 × 12 V 8.2 Ah in series) to form a 24 V battery pack for the UPS. Charging & Backup: In a UPS pack, charging characteristics are controlled by the UPS charger; standalone charging specifications should follow manufacturer recommendations to avoid overcharging. Discover more from SK Techies Subscribe to get the latest posts sent to your email. Type your email… Subscribe
