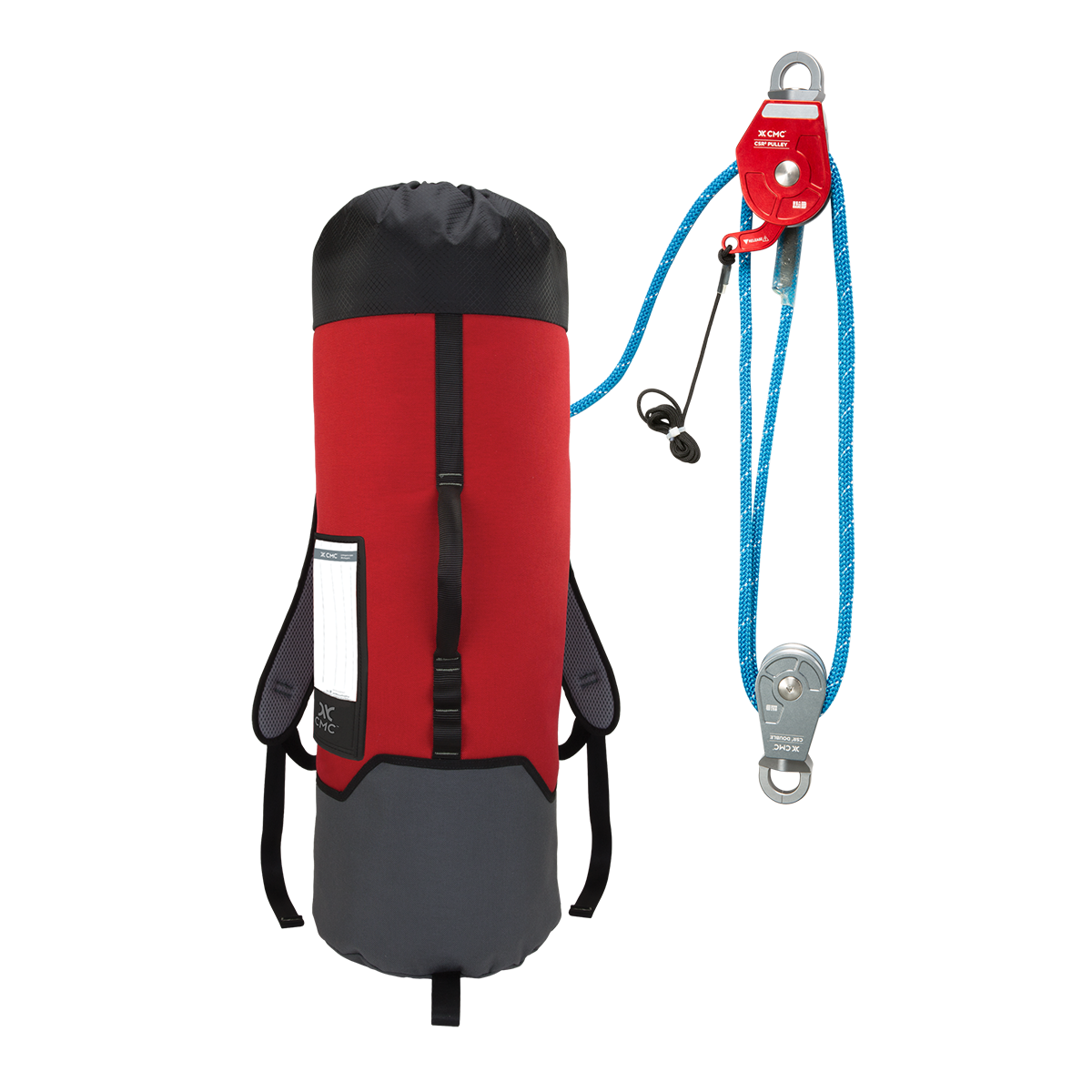

Strong, lightweight, intuitive design Machined from solid block of high-grade aluminum Available with either 11 mm or 12.5 mm Static-Pro Lifeline Systems are UL Classified to NFPA General Use Individual pulleys are classified to NFPA General Use and EN 12278 CSR2 Pulley and Double Pulley MBS 40 kN (8,992 lbf) Includes (2) ProSeries™ Aluminum Screw-Lock Carabiners, NFPA General Use Includes 1.52 m (5 ft) of 4 mm (5/32 in) nylon accessory cord to remotely control the locking mechanism 11 mm System Components Includes(1x) 200 ft of 11 mm Static-Pro Lifeline in Blue (1x) CMC Bag #2 in Red(1x) CSR2 Double Pulley(1x) CSR2 Pulley(2x) CMC ProSeries Aluminum Screw-Lock Carabiners (1x) 5 ft of 4mm nylon accessory cord 12.5 mm System Components Includes(1x) 200 ft of 12.5 mm Static-Pro Lifeline in Red (1x) CMC Bag #3 in Red(1x) CSR2 Double Pulley(1x) CSR2 Pulley(2x) CMC ProSeries Aluminum Screw-Lock Carabiners (1x) 5 ft of 4mm nylon accessory cord Technical Specifications 11 mm Model12.5 mm ModelMBS40 kN40 kNWeight9.3 kg 11.3 kg Certifications NFPA G
color
White
Specification
Camera Feature
Image Sensor
1/2.7″ CMOS
Effective Pixels
2026(H)×1080(V), 2MP
IR Distance
Up to 20m (66feet)
Others
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25~1/100000s
NTSC: 1/30~1/100000s
Minimum Illumination 0.04Lux/F1.85, 30IRE, 0Lux IR on
S/N Ratio More than 65dB
Lens
Type
Fixed lens / Fixed iris
Focal Length
3.6mm (6mm Optional)
Aperture
F1.85
Angle of View
H: 93° ( 54.7°)
Physical Specification
Dimension
70mm×70mm×149mm (2.76″×2.76″×5.87″)
Weight
Net Weight 0.14kg (0.31lb)
Gross Weight 0.17kg (0.37lb)
Power
Power Supply 12V DC ±30%
Power Consumption Max. 2.7W (12V DC, IR on)
