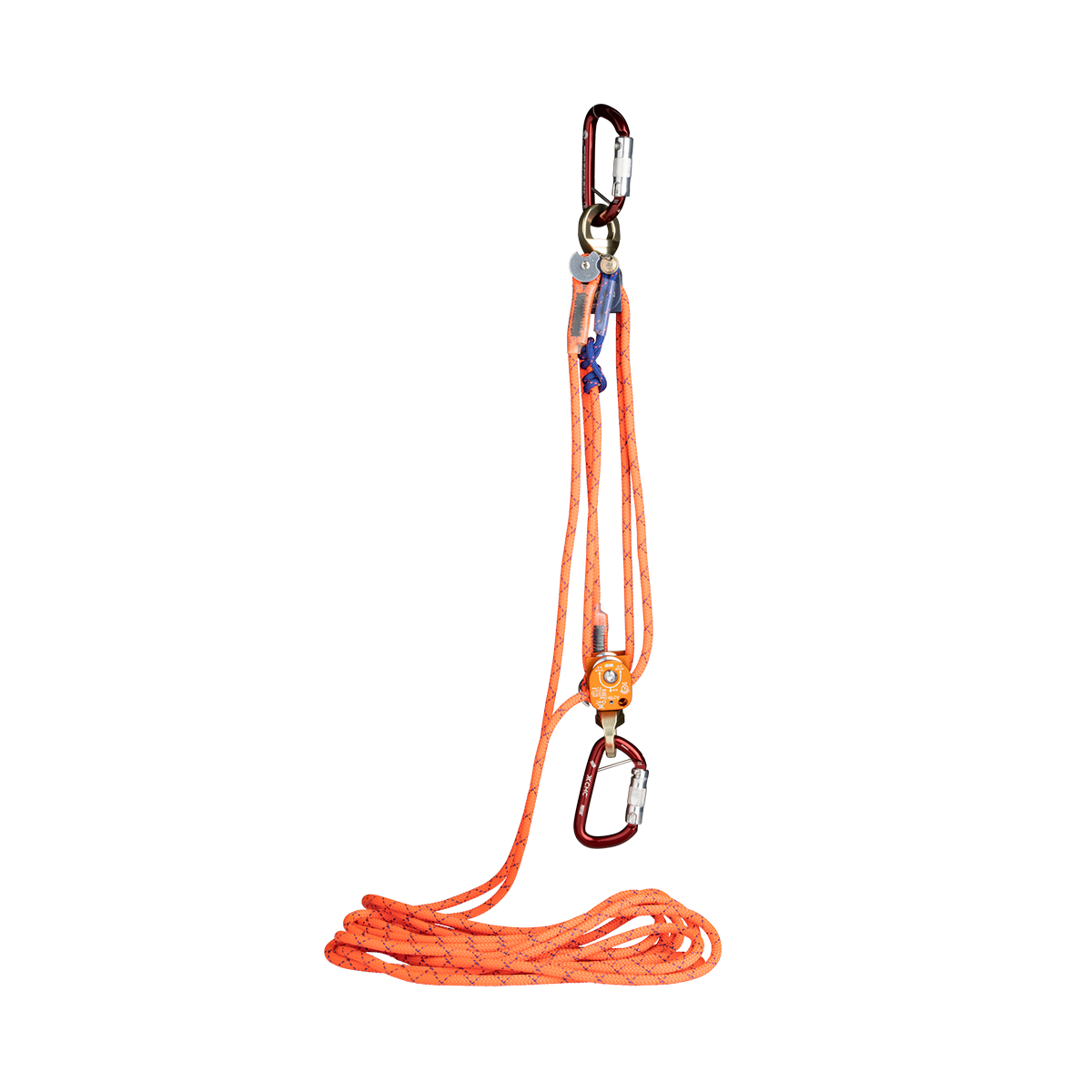

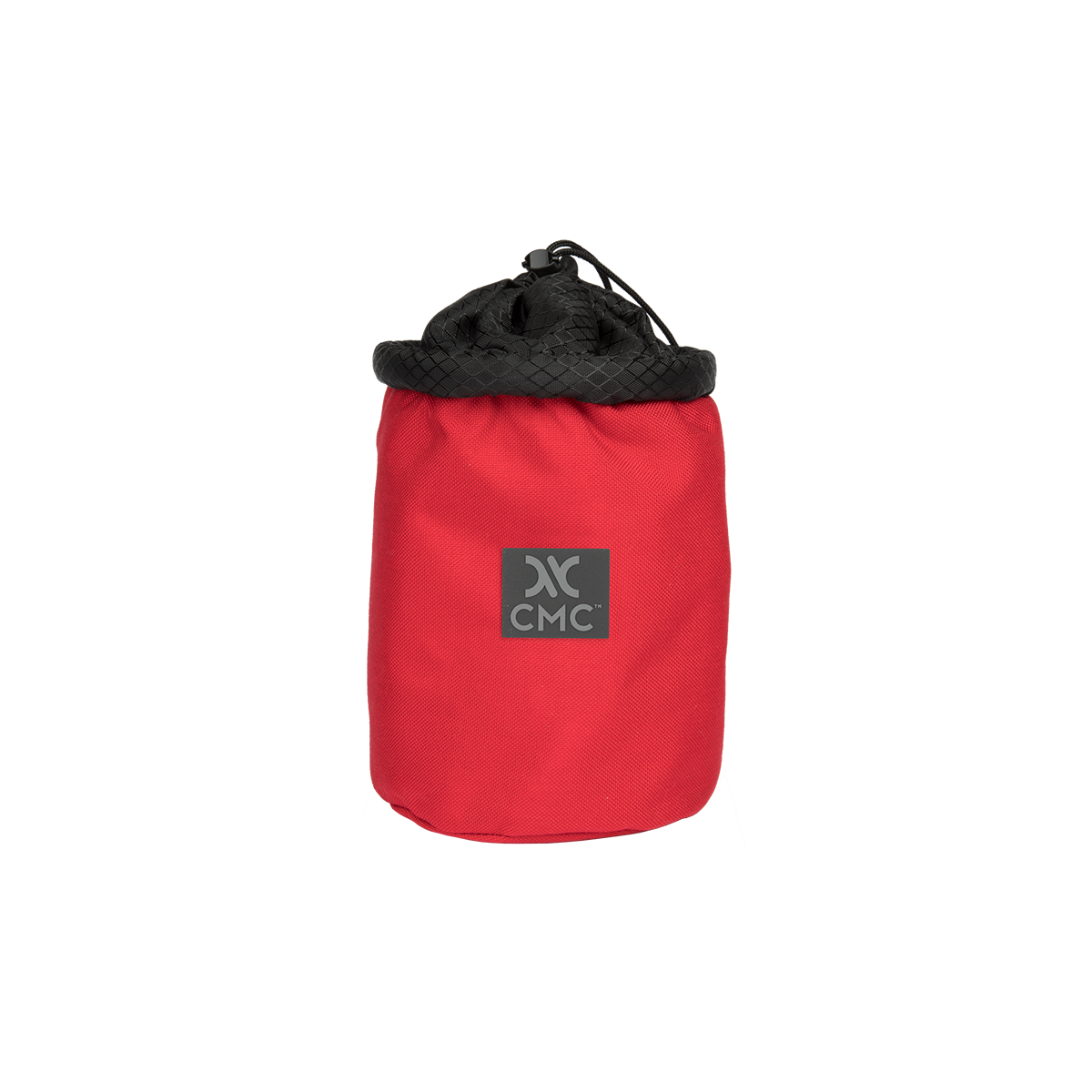

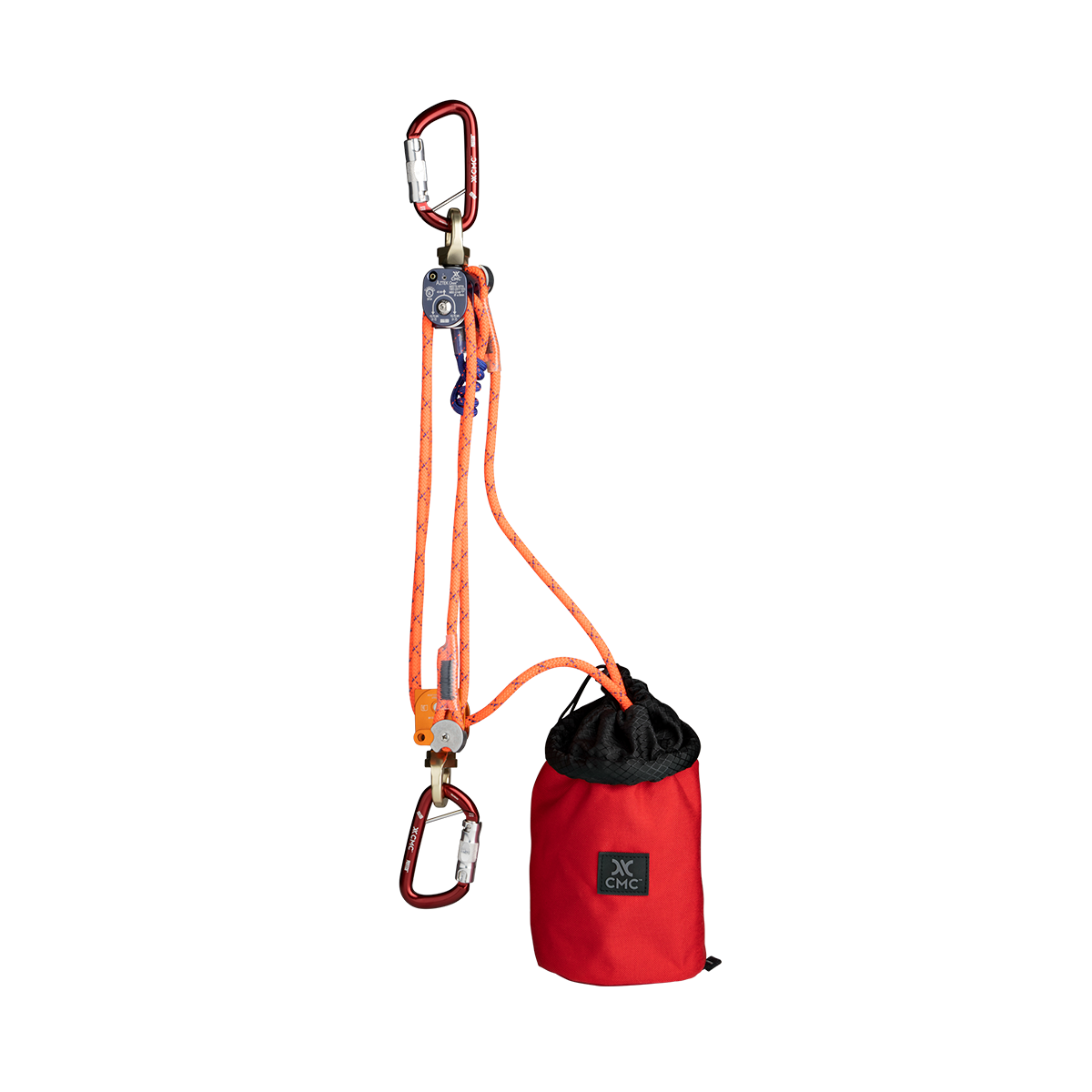

Uses Whether using the set-of-fours (SOFs) as a quick 4:1 or 5:1 M/A for a multitude of rigging applications, or for personal edge protection, the versatile Aztek ProSeries System gives rescuers endless rigging solutions: Quickly adjusts litter attendant position High angle litter scoops Solo pick-off Easily pass knots Correct disoriented equipment under load Effortlessly transfer loads Promptly establish dynamic fixed brakes Pretensioned back-ties Redirect anchors Establish travel restriction Dynamic directionals Dynamic lowers Hauling systems High angle attendant tether Load-releasing hitch Personal mechanical advantage (PMA) Tensioned guying Contents The CMC Aztek ProSeries System comes fully assembled in the Aztek ProSeries Pack and includes the following: CMC AZTEK Omni Pulley Set Quick Pin for AZTEK Omni Pulley (1) AZTEK ProSeries Cord – 8.5 m (28 ft) of 8 mm hi-viz orange, Sewn-Eye Termination ProTech™ Aluminum Auto-Lock Carabiners (2) w/ removable keeper pin – not installed AZTEK Bound-Loop Prusik, blue (6 mm) – 9 in Storage pouch with quick-connect attachment (red) Technical Specifications 3 Sigma MBS36 kNWeight1.3 kg Certifications NFPA G
| color | White |
|---|
Specification
| Camera Feature | ||
| Image Sensor | 1/2.7″ CMOS | |
| Effective Pixels | 2026(H)×1080(V), 2MP | |
| IR Distance | Up to 20m (66feet) | |
| Others | Scanning System Progressive Electronic Shutter Speed PAL: 1/25~1/100000s NTSC: 1/30~1/100000s Minimum Illumination 0.04Lux/F1.85, 30IRE, 0Lux IR on S/N Ratio More than 65dB |
|
| Lens | ||
| Type | Fixed lens / Fixed iris | |
| Focal Length | 3.6mm (6mm Optional) | |
| Aperture | F1.85 | |
| Angle of View | H: 93° ( 54.7°) | |
| Physical Specification | ||
| Dimension | 70mm×70mm×149mm (2.76″×2.76″×5.87″) | |
| Weight | Net Weight 0.14kg (0.31lb) Gross Weight 0.17kg (0.37lb) |
|
| Power | Power Supply 12V DC ±30% Power Consumption Max. 2.7W (12V DC, IR on) |
|
