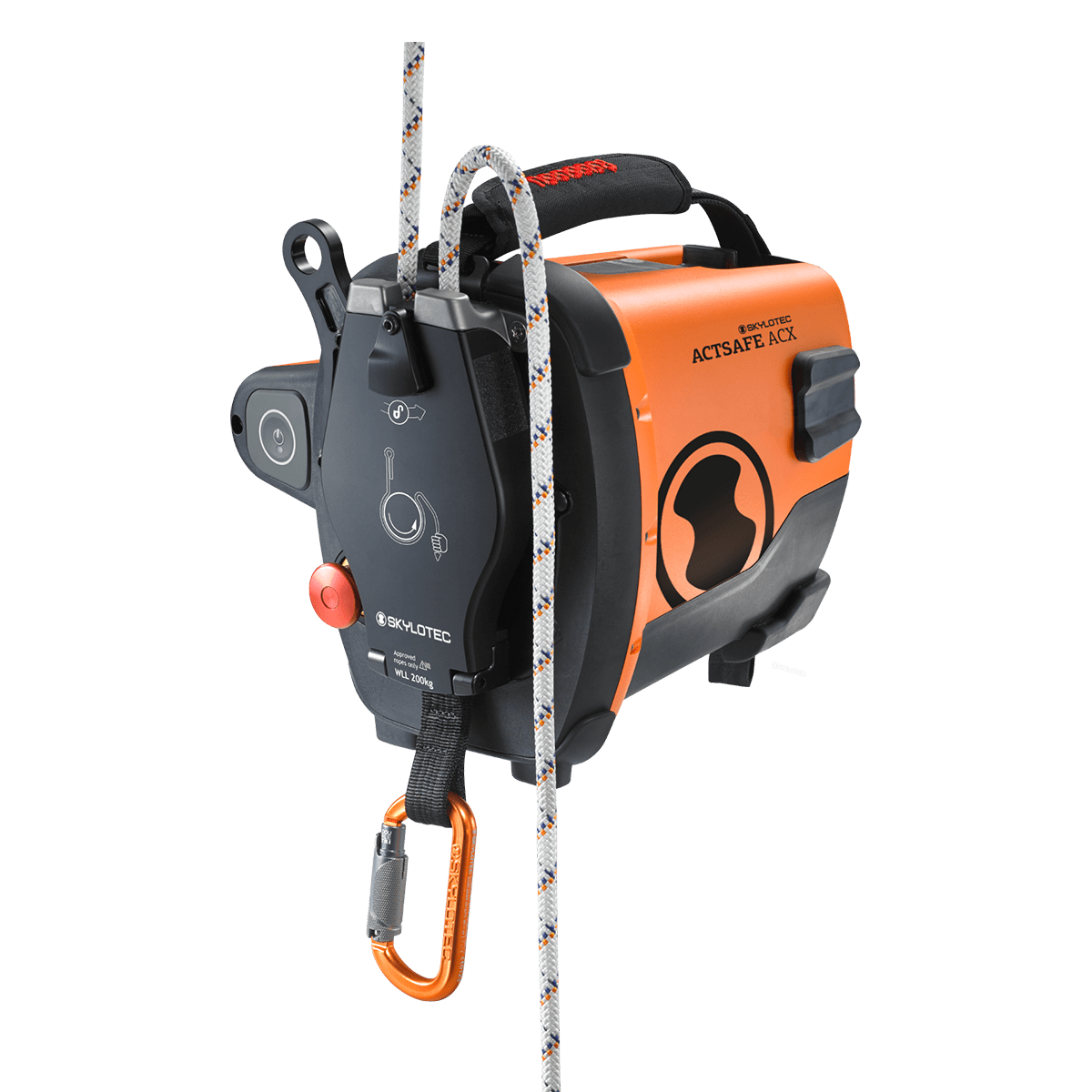

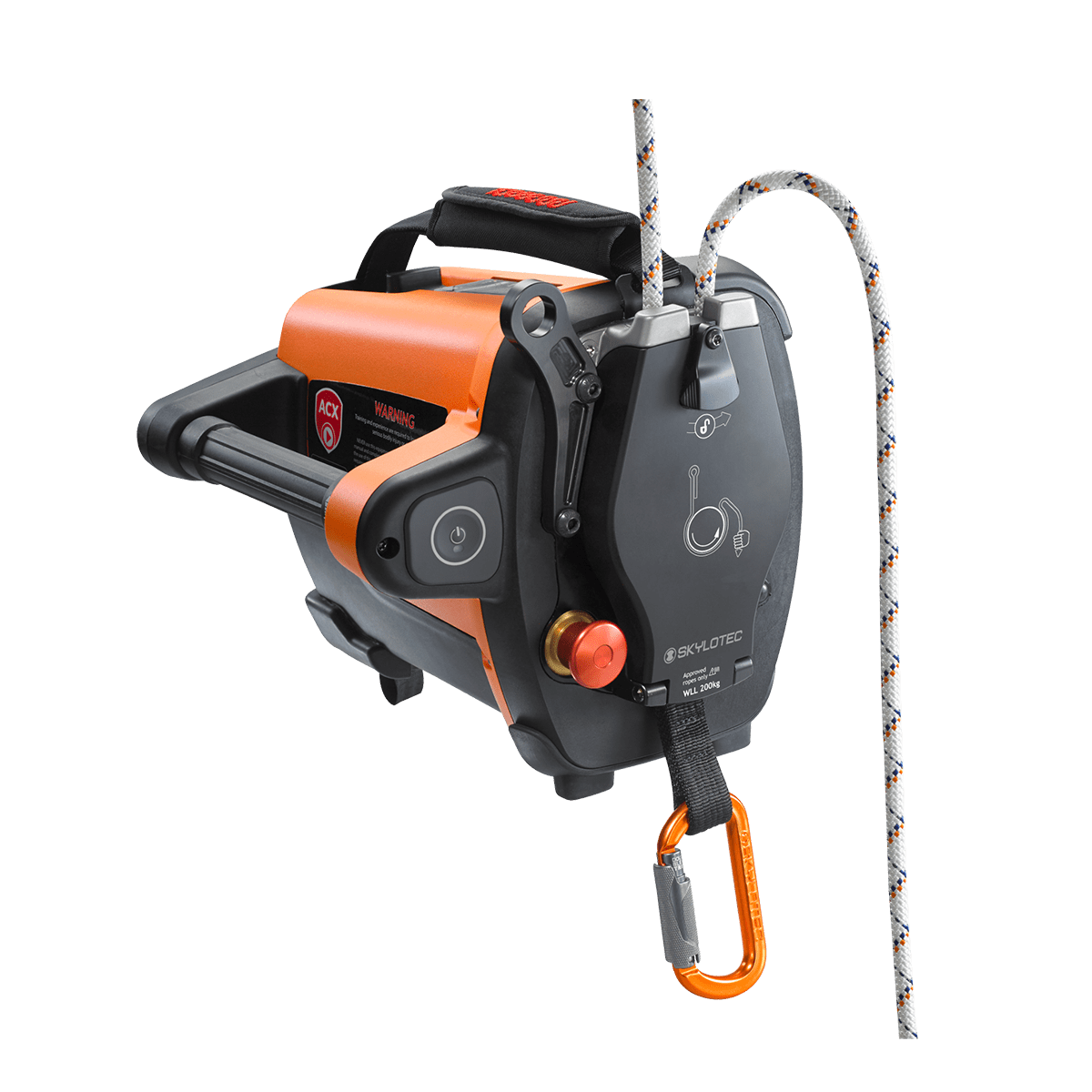

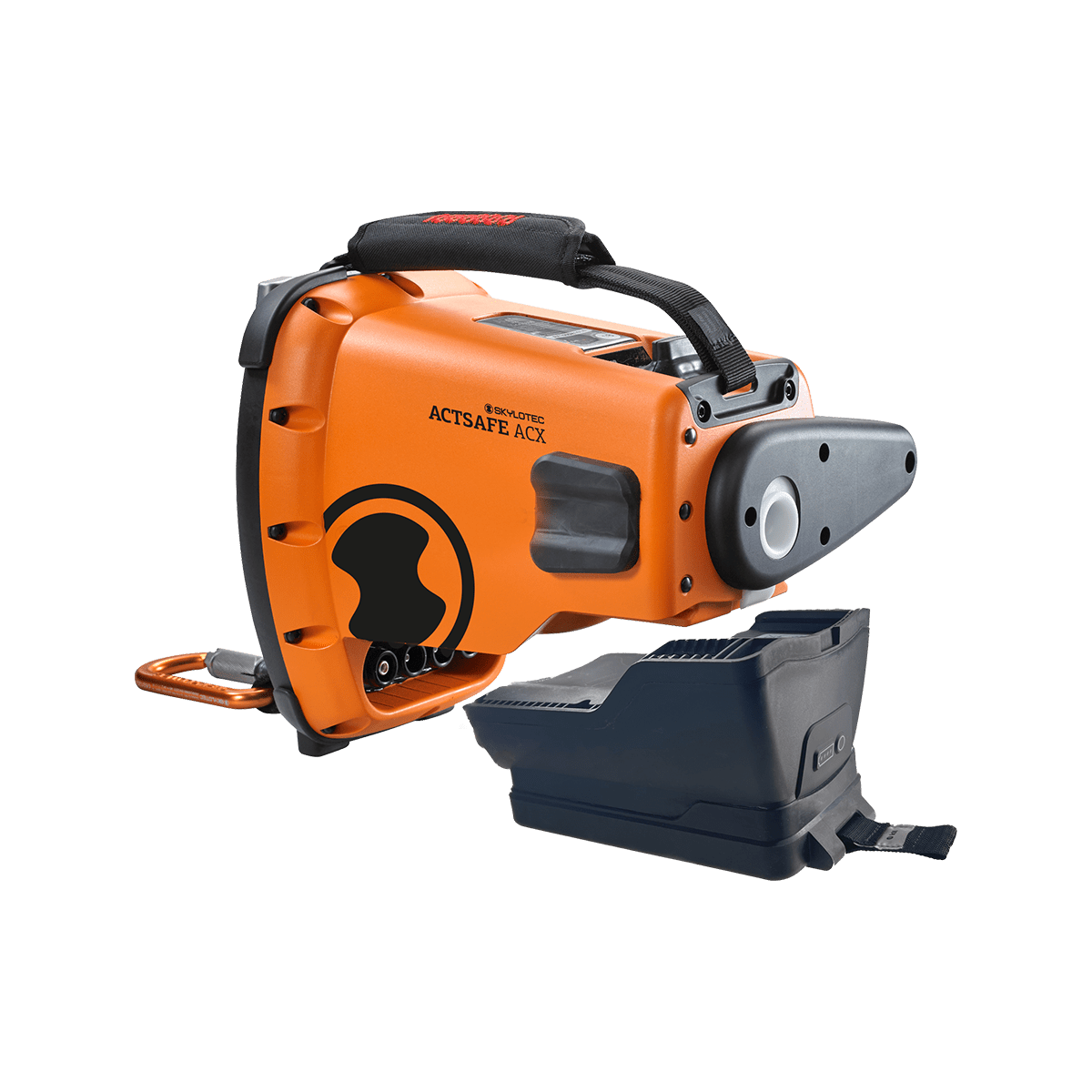

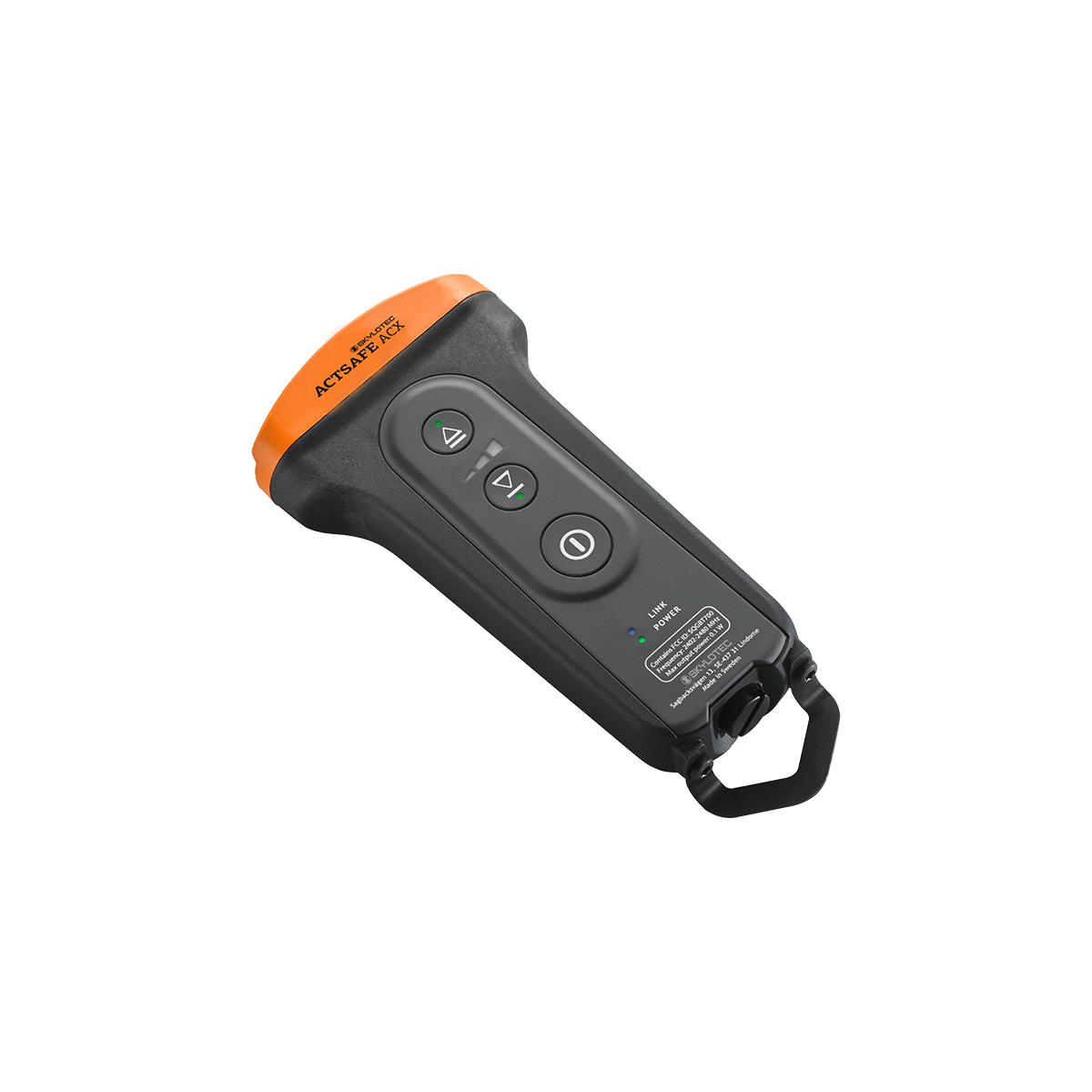

Countless rescue scenarios can also be carried out efficiently and with minimum effort with the ACX. ACX forms a highly flexible system for easy and cost-efficient cleaning or maintenance. In an emergency, the ACX can be controlled by remote control. The operation and use of the ACX can be learned in special training courses. – Simplifies and accelerates work on structures that are difficult to access – Gentle application – Control by remote control up to 150 m. Technical Specifications Rope Compatibility11 mmWorking Load Limit220 kgWeight30 kgRemote Control Range150 mAscend Speed1 – 24 m / minuteDescent Speed1 – 24 m / minuteNoise Level0 – 76 dB(a)Operating Temperature -10 to 40 °CBattery Charge Time90 minutes Battery Range at 20° C with 100 kg load200 minutesMaterialsAluminum, Nylon, Steel
color
White
Specification
Camera Feature
Image Sensor
1/2.7″ CMOS
Effective Pixels
2026(H)×1080(V), 2MP
IR Distance
Up to 20m (66feet)
Others
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25~1/100000s
NTSC: 1/30~1/100000s
Minimum Illumination 0.04Lux/F1.85, 30IRE, 0Lux IR on
S/N Ratio More than 65dB
Lens
Type
Fixed lens / Fixed iris
Focal Length
3.6mm (6mm Optional)
Aperture
F1.85
Angle of View
H: 93° ( 54.7°)
Physical Specification
Dimension
70mm×70mm×149mm (2.76″×2.76″×5.87″)
Weight
Net Weight 0.14kg (0.31lb)
Gross Weight 0.17kg (0.37lb)
Power
Power Supply 12V DC ±30%
Power Consumption Max. 2.7W (12V DC, IR on)
